15" Tour-Grade Powered Loudspeaker (134dB Max)
Model DF-15A
Description 15" Tour-Grade Active Loudspeaker
Series Deep-Forest, High-Dynamic Range

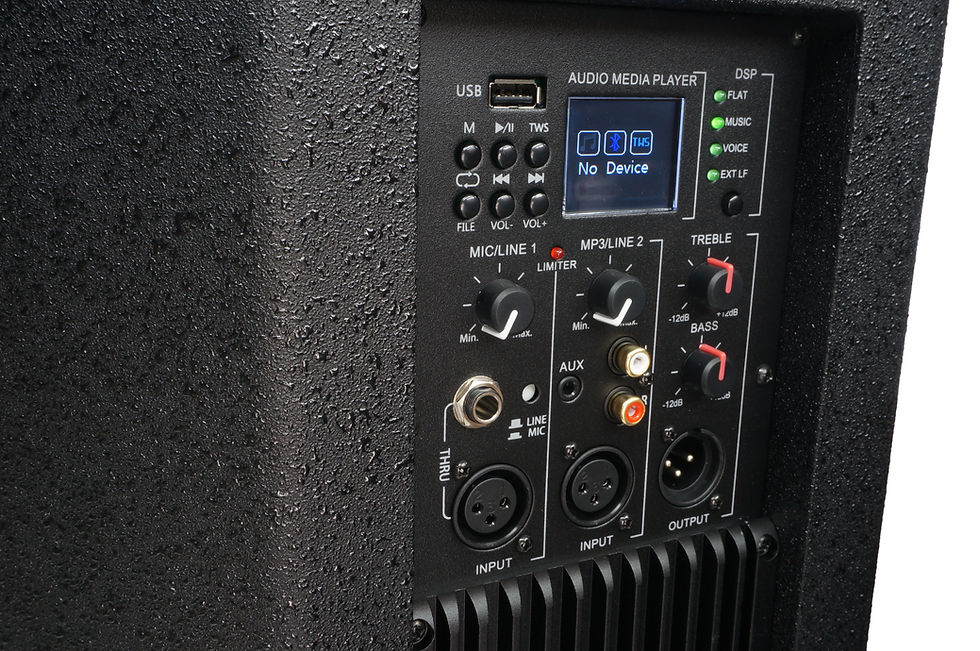

Amplifier Built-in Amplifier with DSP and integrated Media player functions
Power 3000W Peak / 134dB SPL Maximum
Frequency Response Balanced across 45Hz to 20kHz (± 3dB)
Equalization High EQ: 12,000Hz ± 12dB Low EQ: 80Hz ± 12dB
Processing Digital Signal Processor (DSP) for optimized performance and protection
DSP Presets Flat (for Main/Live), Music, Voice and External LF (for external subwoofers)
Line Inputs Balanced XLR, Stereo RCA and 3.5mm AUX line inputs
Microphone Inputs Balanced XLR and 1/4" Microphone Input
Media Player USB MP3 Playback and Bluetooth Receiver
Line Outputs Balanced XLR Line output to additional Active Loudspeakers or Subwoofers Cabinet

Molded cabinet designed for greater definition on the vocal frequencies
Mounting Floor Standing, Pole Mount or Tripod Mount (Straight or 8° downward Tilt)
HF Transducer Large 5.3" Compression driver with 2" Copper Voice Coil and Wide-Dispersion Waveguide
LF Transducer Large 15" Transducer with 3" Copper voice coil
Power Supply 120V / 60Hz US Plug
