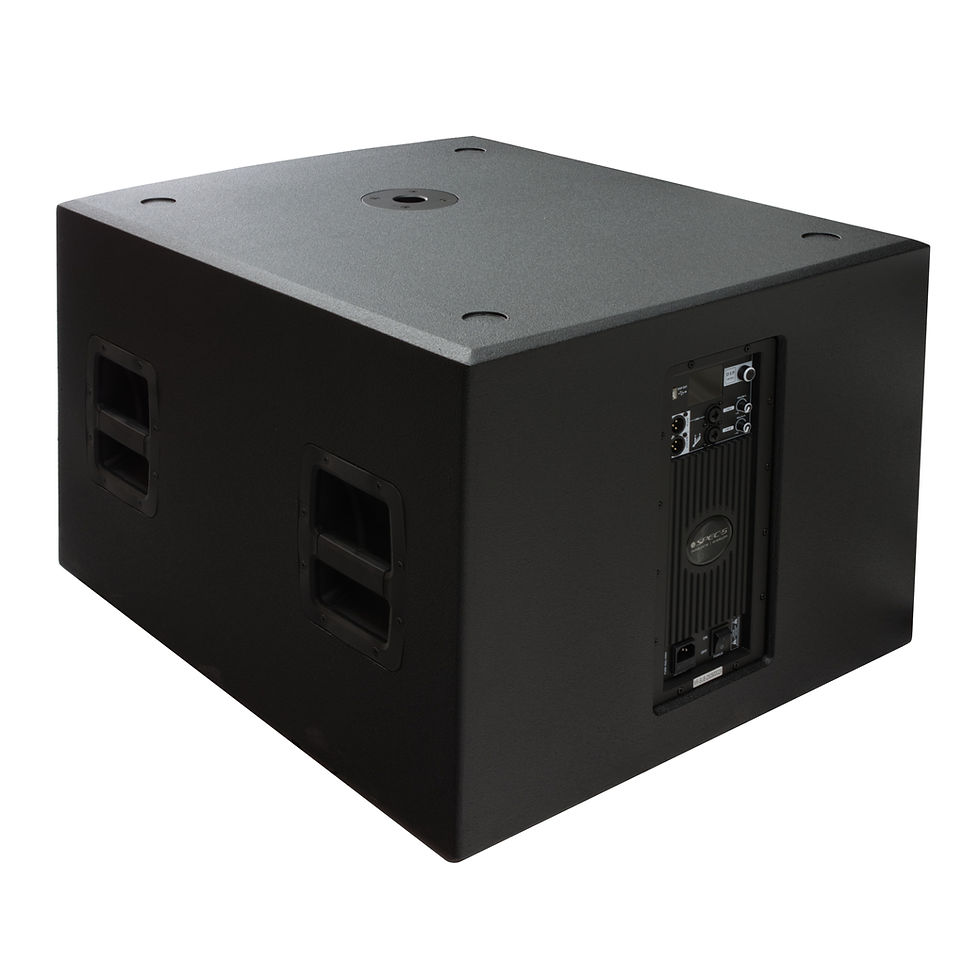

18" Active Subwoofer with DSP, Class-D Amplifier (136dB SPL Max)

Model: XR-SUB
Description Active Subwoofer with DSP, Class-D Amplifier
Power Rating 5000 Watts Peak (1400 Watts RMS)
Woofer 18" Subwoofer 8-ohm (Model: 18X2000-8)
Woofer Details 4" Inside/Out Voice coil with 125 Oz ferrite magnet
Frequency Response 29Hz to 150Hz (+/-10dB) (DSP-tuned)
Maximum SPL 136dB Maximum SPL
DSP Equalization, Master Gain, Input Level display
Line Inputs Two (2) Balanced XLR Line Inputs
Input Connectors Combo socket supports both 3-pin XLR and 1/4" jacks
Outputs Balanced XLR Line-level Mix Out and Ch1 Thru-Out
Cabinet Type Wooden with Textured finish
Mounting Support for Pole-Mounted Active Loudspeakers
Portability Dual Easy-Grip Handles on either sides
Weight 45 kg (about 99 pounds)
Size 635 mm x 715 mm x 525 mm
Voltage AC 100V-240V 60Hz/50Hz (Global)
